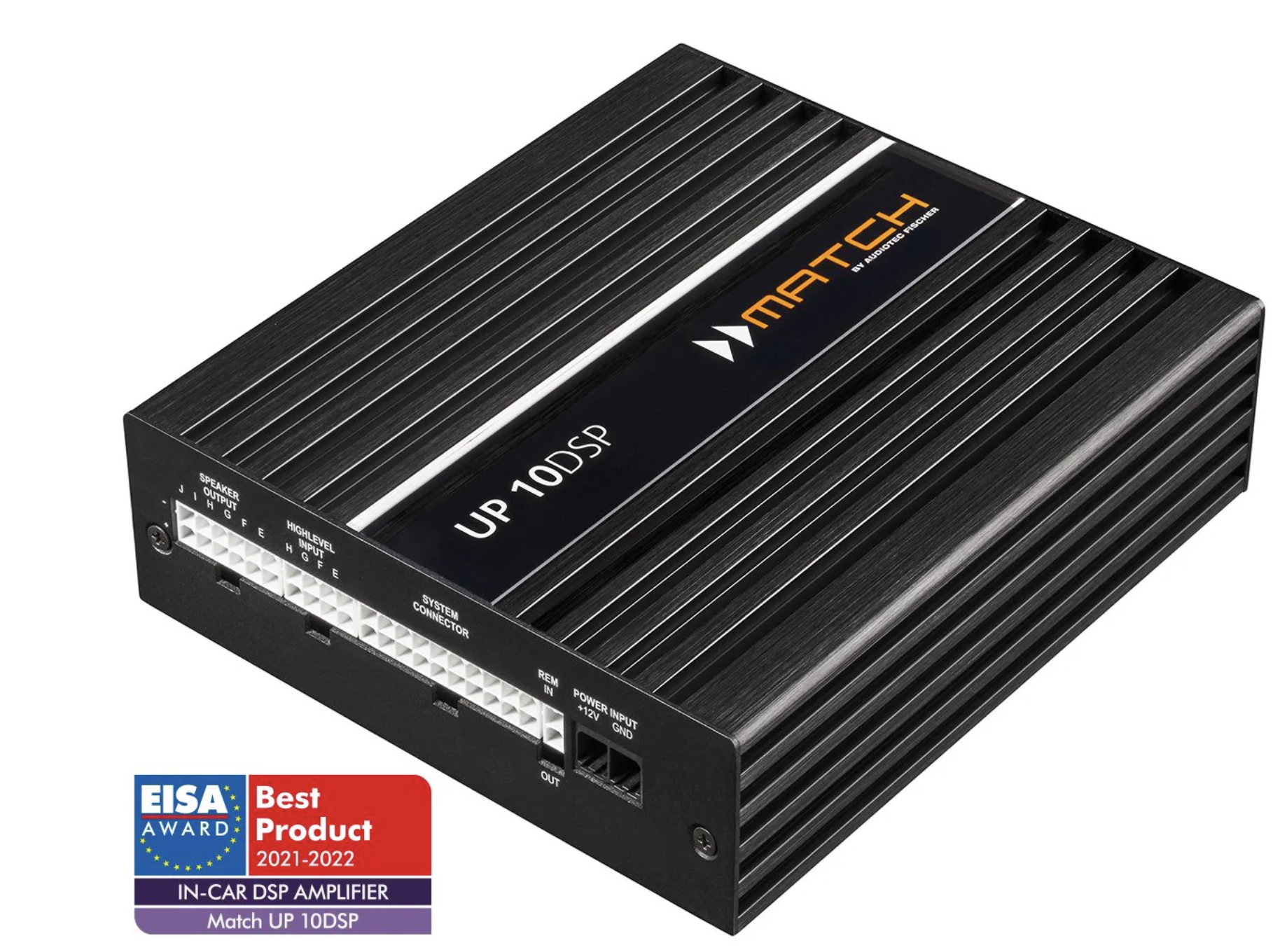

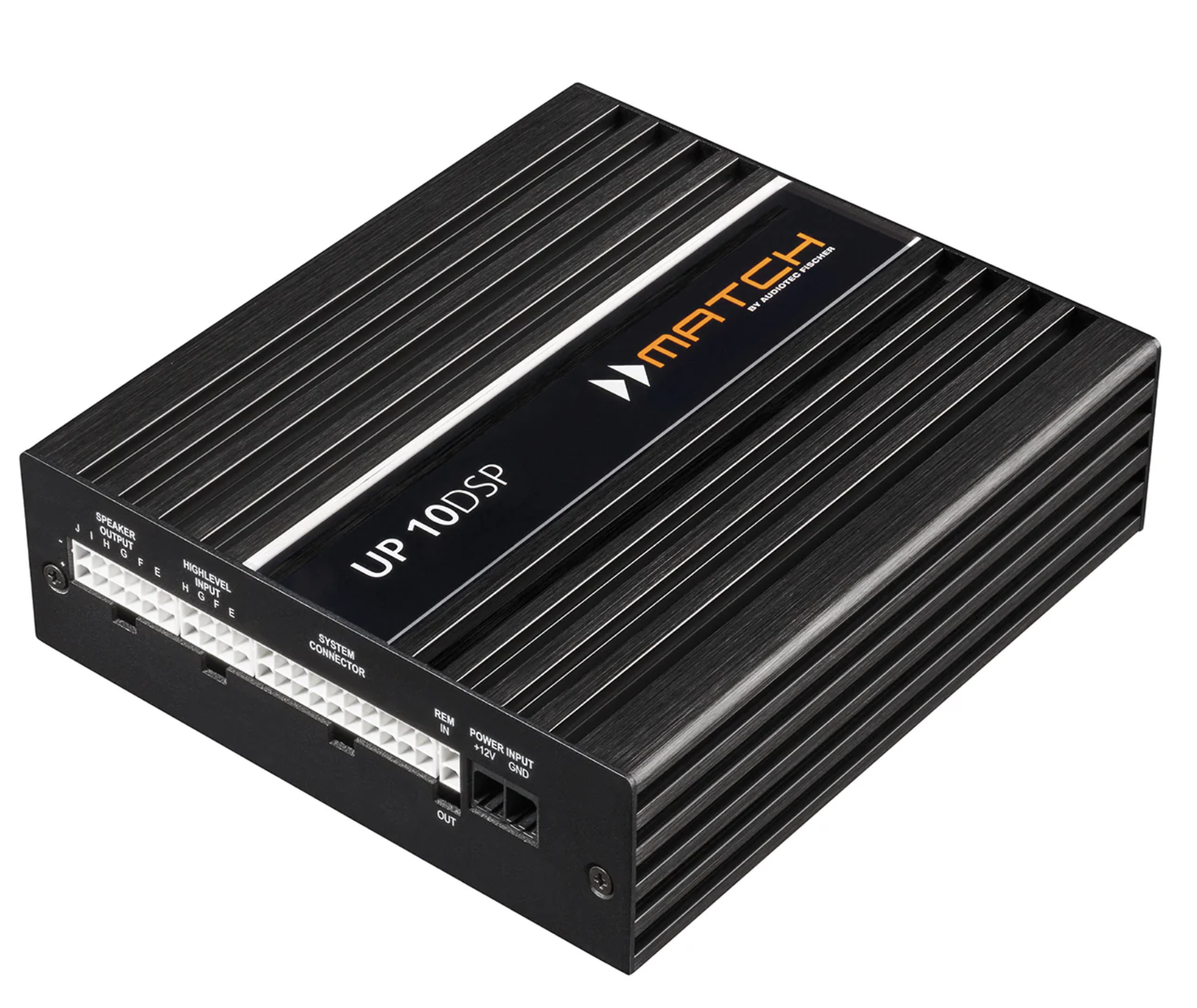

MATCH UP 10DSP - 10 Channel PnP Amplifier | 11ch DSP

$1,950.00

Overview

The premium sound upgrade for multi-channel factory systems

The new UP 10DSP is a real problem solver when it comes to upgrading premium sound systems in today's vehicles. Even though more and more vehicles are equipped with complex multi-channel sound systems ex-works, the sound quality does not always meet one's expectations.
In many cases, a replacement is no longer possible, so that only an amplifier with a large number of highlevel inputs and sophisticated technology can be considered for upgrading the system. And here the new UP 10DSP offers the perfect solution.

Maximum connectivity

For optimal adaptation to existing multi-channel sound systems, the UP 10DSP is equipped with not less than 8 highlevel inputs (two high power inputs with up to 32 Volts), an optical digital input, a MATCH extension card slot, 10 amplifier outputs and a total of 11 processed DSP channels.
In addition, intelligent technologies, such as the proprietary ADEP.3 circuit and 32 Bit ACO platform, ensure safe operation.

A powerhouse in a compact format

Despite its huge output power of 8 x 65 Watts at 4 Ohms and 2 x 90 / 160 Watts at 4 / 2 Ohms at the Sub Outs, as well as the enormous feature set, the UP 10DSP comes in an extremely compact design, so that installation is possible even in confined spaces.

Features

  • Ultra-efficient 10-channel amplifier with 1-channel line output and 11-channel DSP

  • Perfect for upgrading multi-channel factory sound systems

  • Optional cable harnesses for easy integration into existing multi-channel factory sound systems

  • Extremely powerful 64 Bit “fixed point” Audio DSP

  • ACO – Advanced 32 Bit CoProcessor platform for system and DSP features like:

    • ISA (Input Signal Analyzer) and InputEQ for easy analysis and compensation of input signals

    • SFX sound effects – Augmented Bass Processing, StageXpander, RealCenter & Co.

  • High power 8-channel high level input with ADEP.3 circuit – two channels with up to 32 V RMS input sensitivity

  • 1 to 1 Input / Output Routing (IOR) in combination with the optional MEC ANA-LOG IN module – same number of highlevel inputs and amplifier outputs

  • Virtual Channel Processing (VCP) allows even more flexible configuration for highly complex sound systems

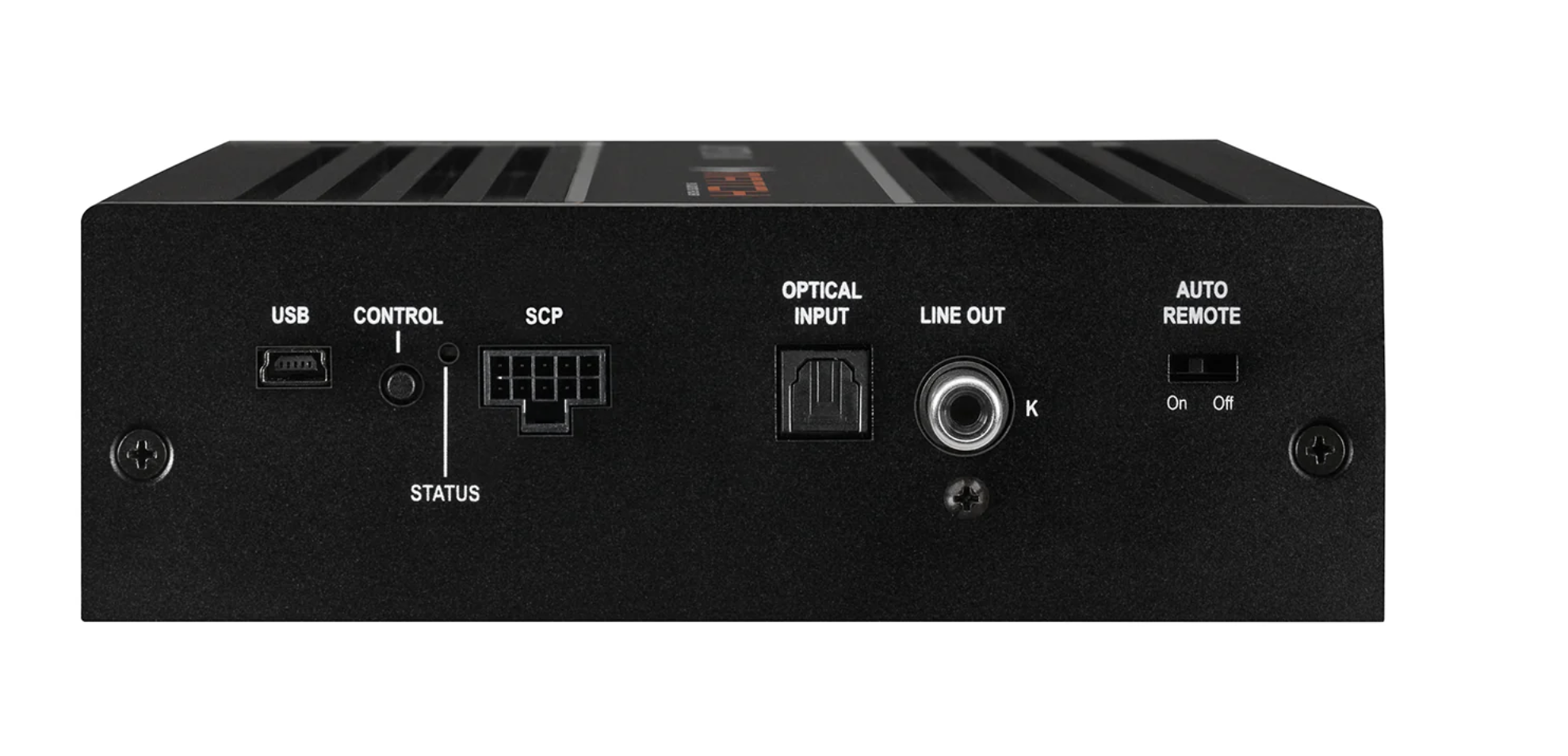

  • MATCH Extension Card slot (MEC) for additional input / output modules like Bluetooth®Audio Streaming, High Resolution Audio Streaming via USB etc.

  • Optical input in SPDIF format with sampling rate between 12 and 96 kHz

  • Mono RCA output for the connection of an external amplifier e.g. subwoofer amplifier

  • SCP (Smart Control Port) for optional accessory like WIFI CONTROL, DIRECTOR, CONDUCTOR & Co.

  • Auto Remote switch

  • Start-Stop capability down to 6 Volts supply voltage

  • Compact design with low heat dissipation thanks to extraordinary efficiency

More Details

 Read more details about this product here.

Technical data

UP 10DSP / Output power RMS

@ 4 Ohms Channels A - H: 8 x 65 Watts

@ 2 Ohms -

@ 1 Ohm -

bridged @ 4 Ohms -

bridged @ 2 Ohms -

Subwoofer output @ 4 Ohms Channels I - J: 2 x 90 Watts

Subwoofer output @ 2 Ohms Channels I - J: 2 x 160 Watts

Amplifier technology

Class GD

Inputs

8 x Highlevel speaker input
1 x Optical SPDIF (12 - 96 kHz)
1 x Remote In

Input sensitivity

Channels A - F: 4 - 16 Volts
Channels G - H: 4 - 16 or 8 - 32 Volts

Input impedance RCA / Cinch

-

Input impedance highlevel

9 - 33 Ohms with ADEP.3

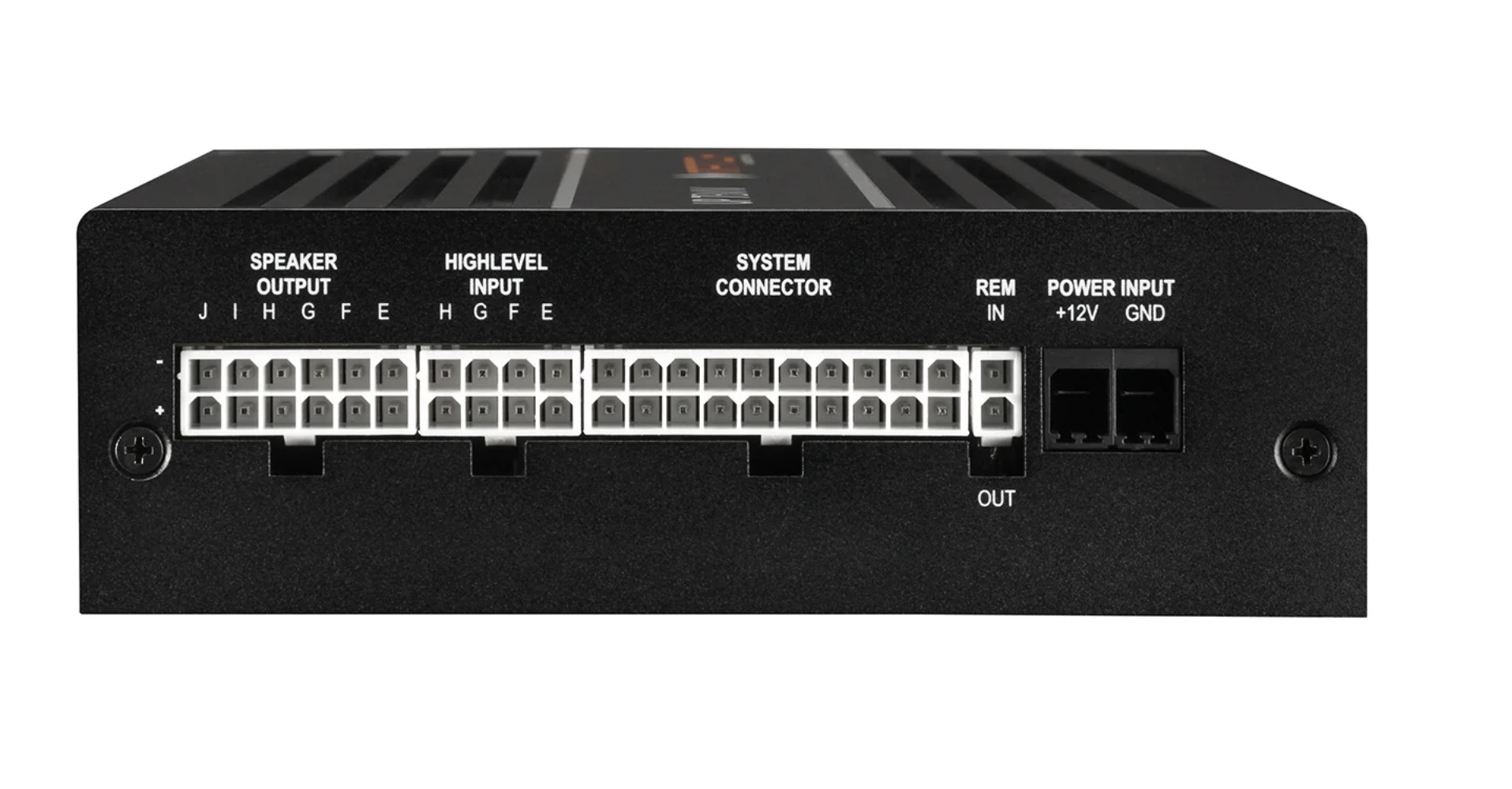

Outputs

10 x Speaker output
1 x RCA / Cinch
1 x Remote Out

Output voltage RCA / Cinch

3 Volts

Frequency response

10 Hz - 22,000 Hz

DSP resolution

64 Bit

DSP power

295 MHz (1.2 billion MAC operations/second)

Sampling rate

48 kHz

DSP type

Audio signal processor

Signal converters

A/D: BurrBrown
D/A: BurrBrown

Signal-to-noise ratio digital input

105 dB (A-weighted)

Signal-to-noise ratio analog input

103 dB (A-weighted)

Distortion (THD)

< 0.03 %

Damping factor

> 100

Operating voltage

10.5 - 18 Volts (max. 5 sec. down to 6 Volts)

Power rating

DC 12 V ⎓ 60 A max.

Idle current

500 mA

Max. remote output current

500 mA

Operating temperature range

-40° C to +70° C

Fuse

2 x 25 A LP-Mini-fuse (APS)

Additional features

Class GD technology with dynamically controlled power supply, 32 Bit CoProcessor, ADEP.3 circuit, Start-Stop capability, Smart Control Port, USB, MEC slot, Auto Remote switch, galvanically isolated Line Out

Dimensions (H x W x D)

46 x 145 x 163 mm /
1.81 x 5.71 x 6.42"

Package Items

1 x MATCH UPGRADE amplifier UP 10DSP
2 x Connection cable
1 x Control Input-to-SCP adaptor
1 x Mounting plates & material
1 x USB cable
1 x Instruction manual
