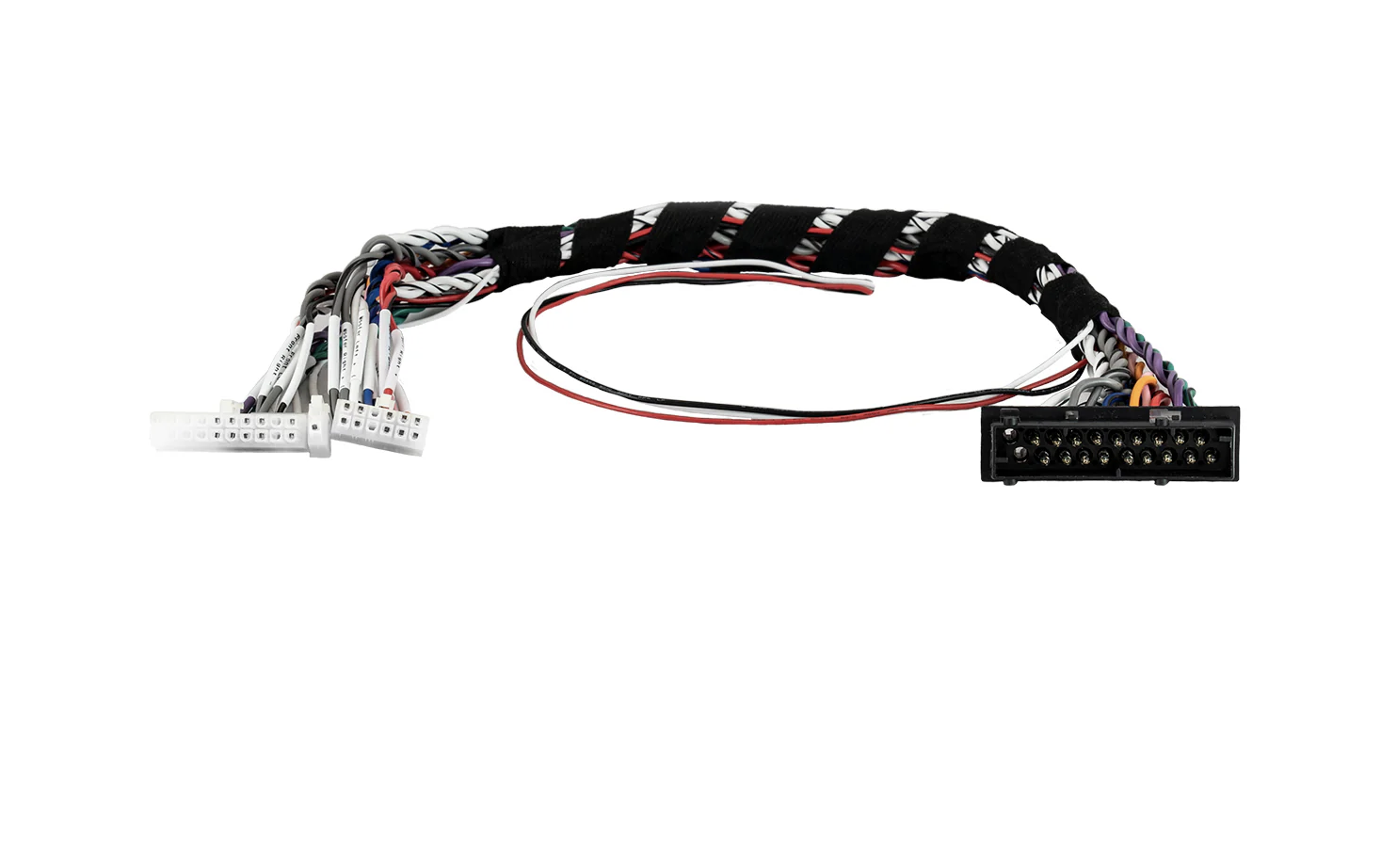

MATCH PP-BMW 1.9HK+SDMI - Harness For MATCH UP 10DSP To Fit BMW With Harman Kardon (F Gen)
Overview
The 9-channel UPGRADE cable harness PP-BMW 1.9HK+SDMI enables an easy connection of a MATCH UP 10DSP amplifier in combination with the SDMI25 to selected BMW vehicles of the E and F series with Harman Kardon sound system.
Features
Plug & Play connectors for an easy connection of a MATCH UP 10DSP amplifier
BMW system plug for connecting the vehicle cable harness
Including connection cables for the SDMI25 power supply and remote input
Cable length 1.00 meter
Technical data
Connections
1 x 20-pole MOLEX plug for the connection of the System Connector input of the UP 10DSP
1 x 12-pole MOLEX plug for the connection of speaker outputs E - J of the UP 10DSP
1 x 2-pole MOLEX plug for the connection of the remote input of the UP 10DSP
1 x connection cables with flying leads for connecting the power and remote input of the SDMI25
1 x 18-pole BMW system plug
Compatibility
For connection of the MATCH UP 10DSP in combination with the SDMI25
Suitable for BMW vehicles of the E and F series with factory-installed Harman Kardon sound system and fibre optic connection
Package Items
1 x Plug & Play cable harness PP-BMW 1.9RAM-HK
