ETON MA6 PERFORMANCE 6CH AMPLIFIER
Design Ideologies
The new Performance amplifier series combines the best performance with the smallest installation dimensions and also looks timelessly elegant. The high-quality die-cast aluminum enclosures are not only particularly attractive and have a perfect gunmetal surface finish, they are also particularly effective in terms of heat dissipation and enable maximum performance in the smallest possible size.
Control And Flexibility

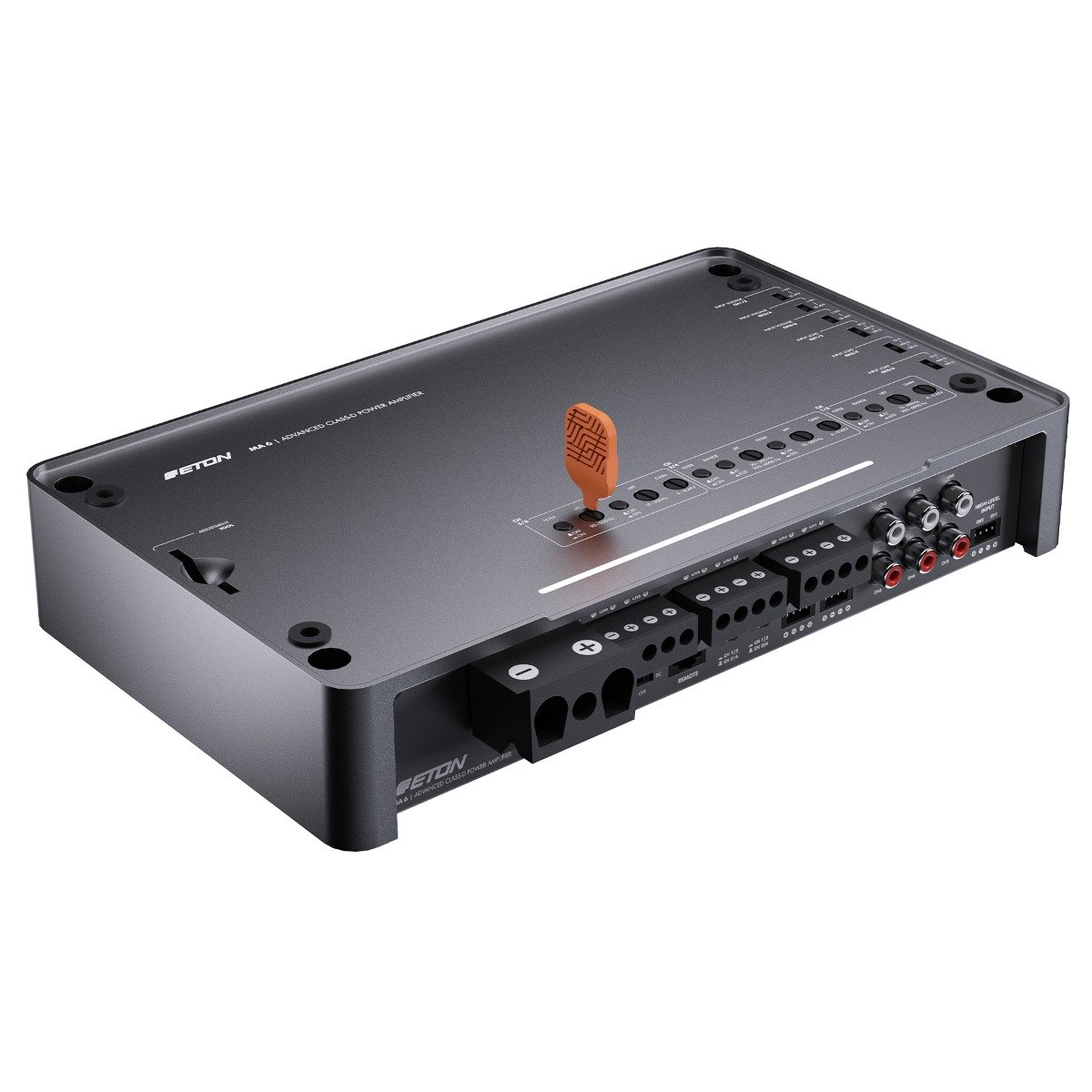

The removable aluminum cover plate on the top conceals the newly developed LED light-bar, an integrated setting tool and numerous setting options. These include active high-ass and low-pass filters, gain settings as well as high-level input voltage and input resistance.
Impressive Performance
The new power amplifiers impress with high performance values, sensationally low THD+N distortion, good damping factor and slew rate and exceptional power.
Mounting Up

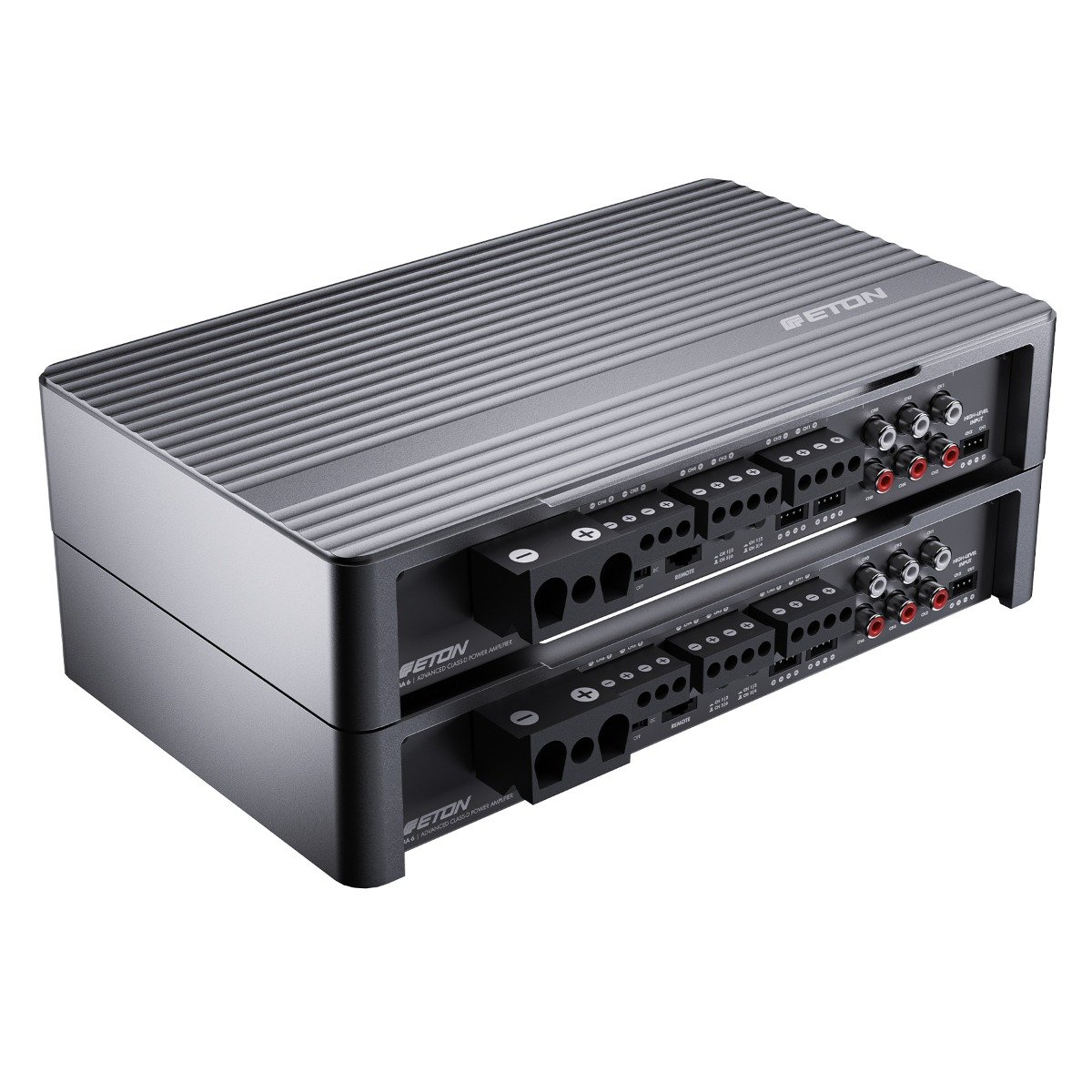

Hardware wise they’re vertically stackable and come with detachable connection plugs, variable mounting feet, hidden mounting holes, 180° rotatable top cover, active filter, EPS load and much more.
Design Features
– High-power class D technology.
– Impressive efficiency.
– High and low level inputs.
– Stackable chassis design.
– 180° rotatable top cover.
– LED light-bar.
– Ready for cars equipped with start / stop technology.

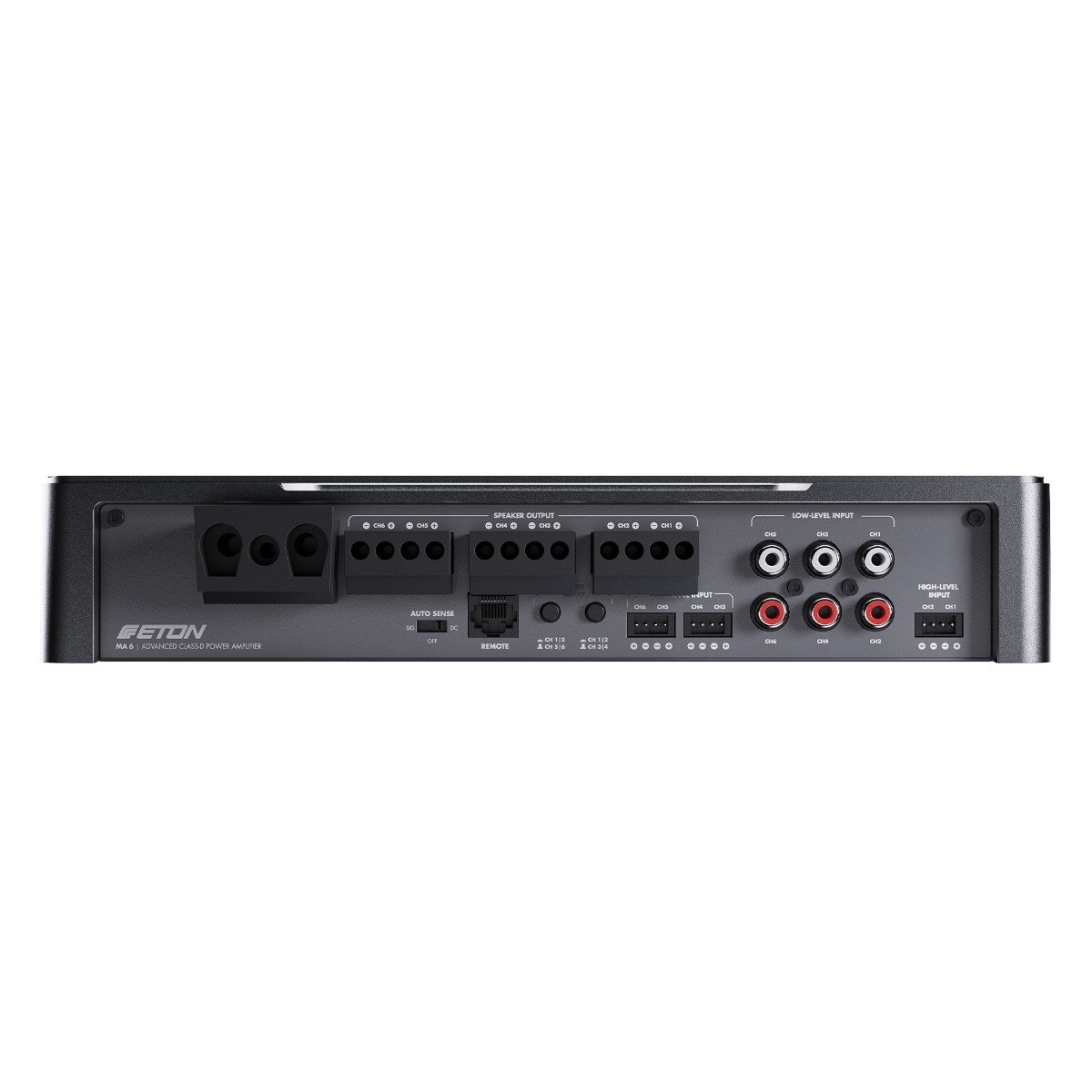

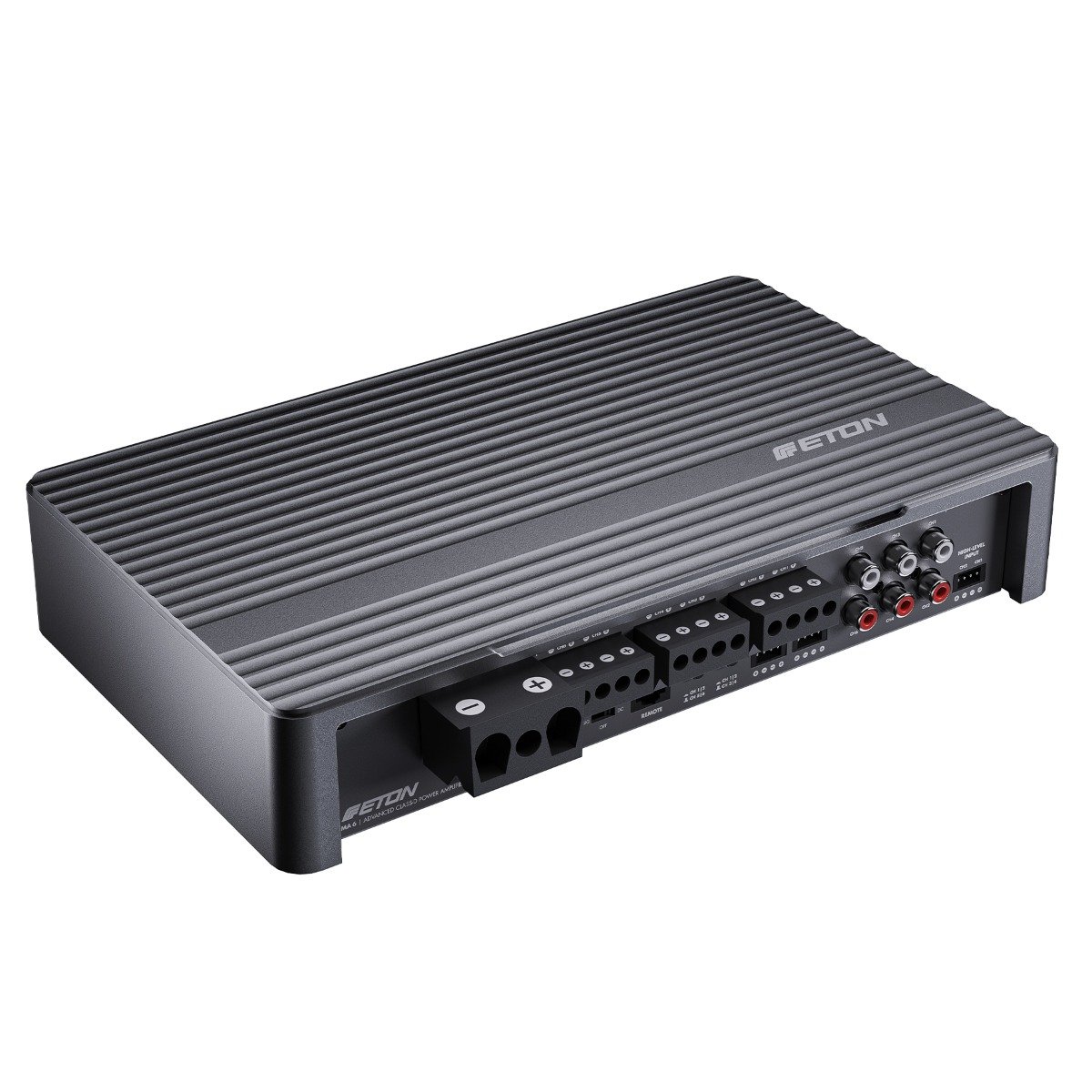

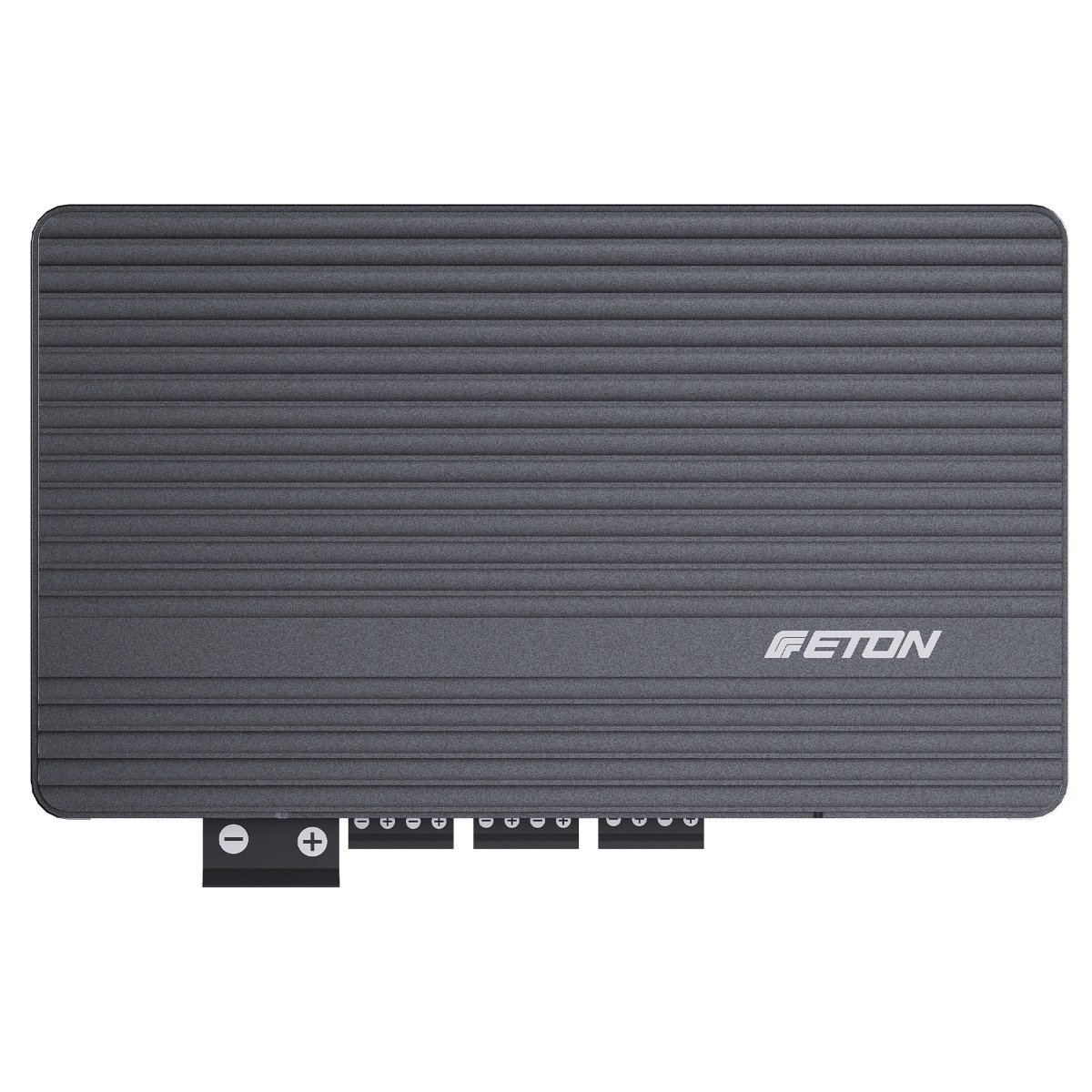

State-of-the-art Advanced Class-D amplifier technology in a smart installation dimension of just 270 x 160 x 51 mm. High-quality die-cast aluminum housing in gunmetal finish. High-performance 6-channel amplifier with 6 x 120 W RMS at 4 Ω, 6 x 225 W RMS at 2 Ω and 3 x 450 W RMS at 4 Ω bridged, signal-to-noise ratio 91 dB, damping factor @ 4 Ω >165, Ultra Low-THD+N 0.003 @ 5 W 1 kHz, active filter high-pass CH 1/2: 15 - 300 Hz | 300 - 6000 Hz, CH 3/4 & CH 5/6: 15 - 300 Hz, Active filters low pass CH 3/4: 30 - 300 Hz | 300 - 6000 Hz, CH 5/6: 30 - 300 Hz, Auto Sense-On function: SIG / DC, 6 x high level inputs, 6 x low level inputs (RCA), High level input signal voltage: 1 - 15 V | 15 - 40 V, High-level input resistance: 10 | 150 | 600 Ω, adjustable gain per channel 0.45 V - 6 V, switchable audio signal source, removable connection plugs (power and audio signal), removable aluminum cover (ETON logo rotatable 180° upside down), integrated adjustment tool for active filter and gain settings, LED status lightbar, stacking function of several amplifiers, hidden mounting by means of blind holes or easy mounting by means of removable and adjustable mounting feet, incl. Level remote control, high-level cable adapter, mounting feet and fixing screws. Engineered in Germany.
