ETON MA4 PERFORMACE 4CH AMP
Design Ideologies
The new Performance amplifier series combines the best performance with the smallest installation dimensions and also looks timelessly elegant. The high-quality die-cast aluminum enclosures are not only particularly attractive and have a perfect gunmetal surface finish, they are also particularly effective in terms of heat dissipation and enable maximum performance in the smallest possible size.
Control And Flexibility

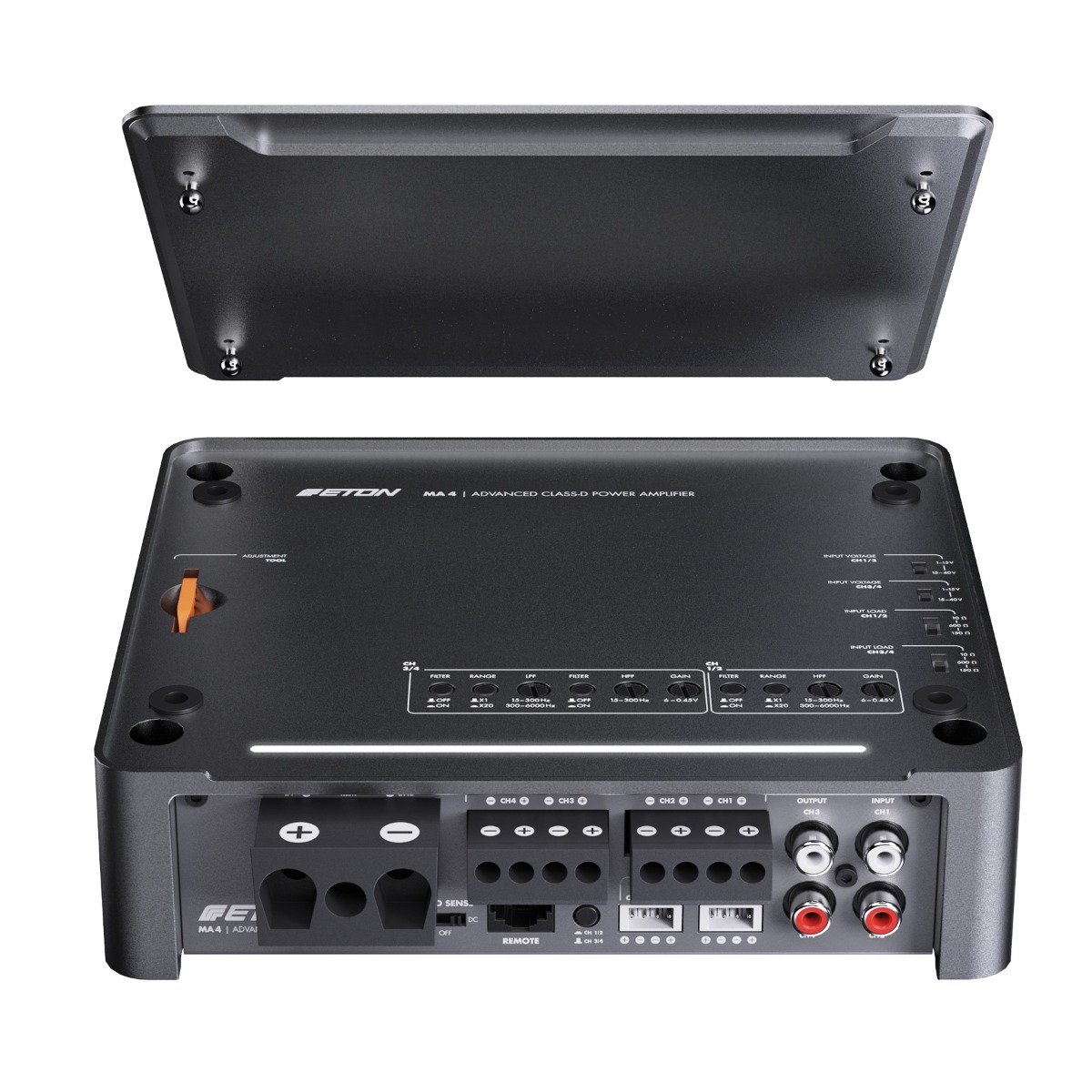

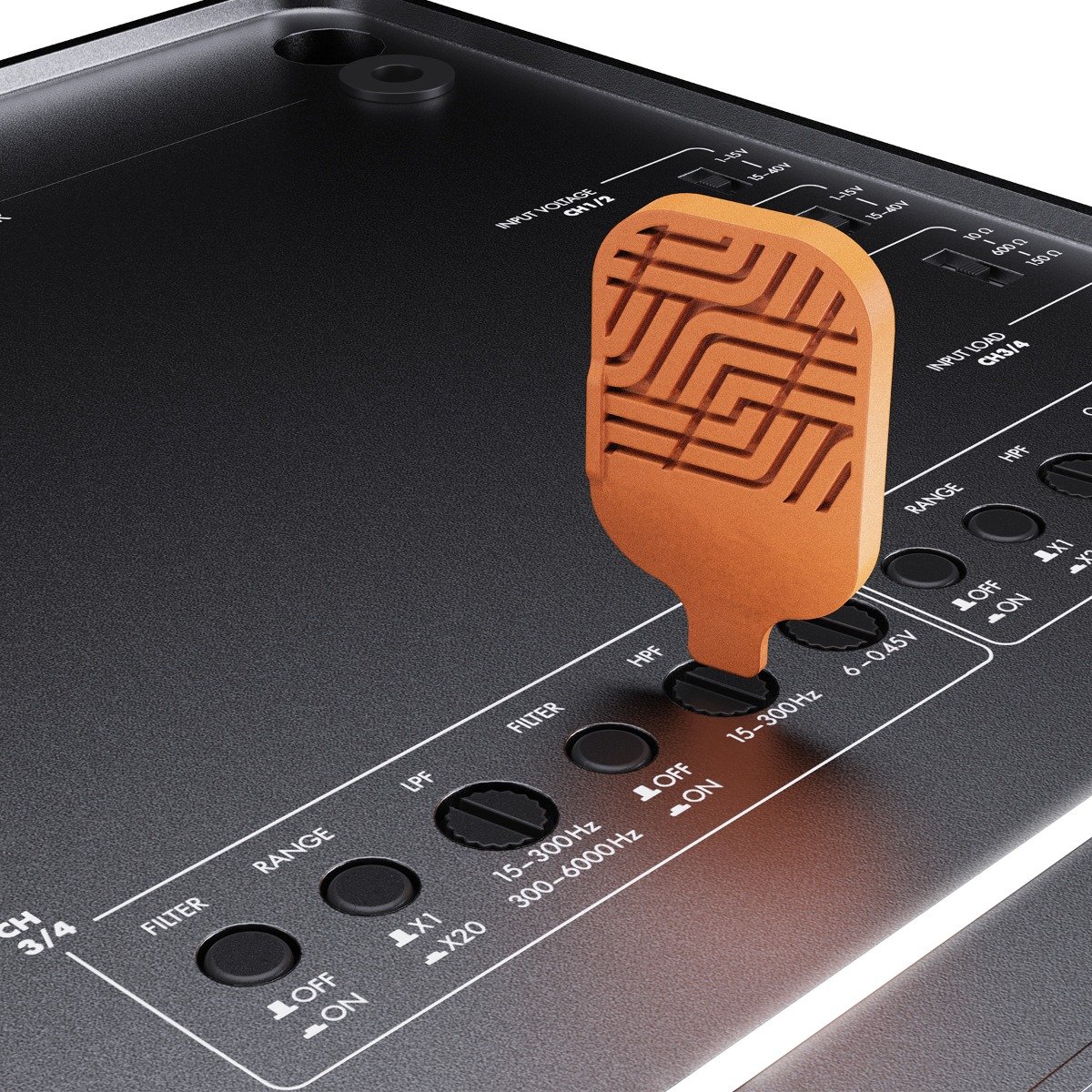

The removable aluminum cover plate on the top conceals the newly developed LED light-bar, an integrated setting tool and numerous setting options. These include active high-ass and low-pass filters, gain settings as well as high-level input voltage and input resistance.
Impressive Performance
The new power amplifiers impress with high performance values, sensationally low THD+N distortion, good damping factor and slew rate and exceptional power.
Mounting Up

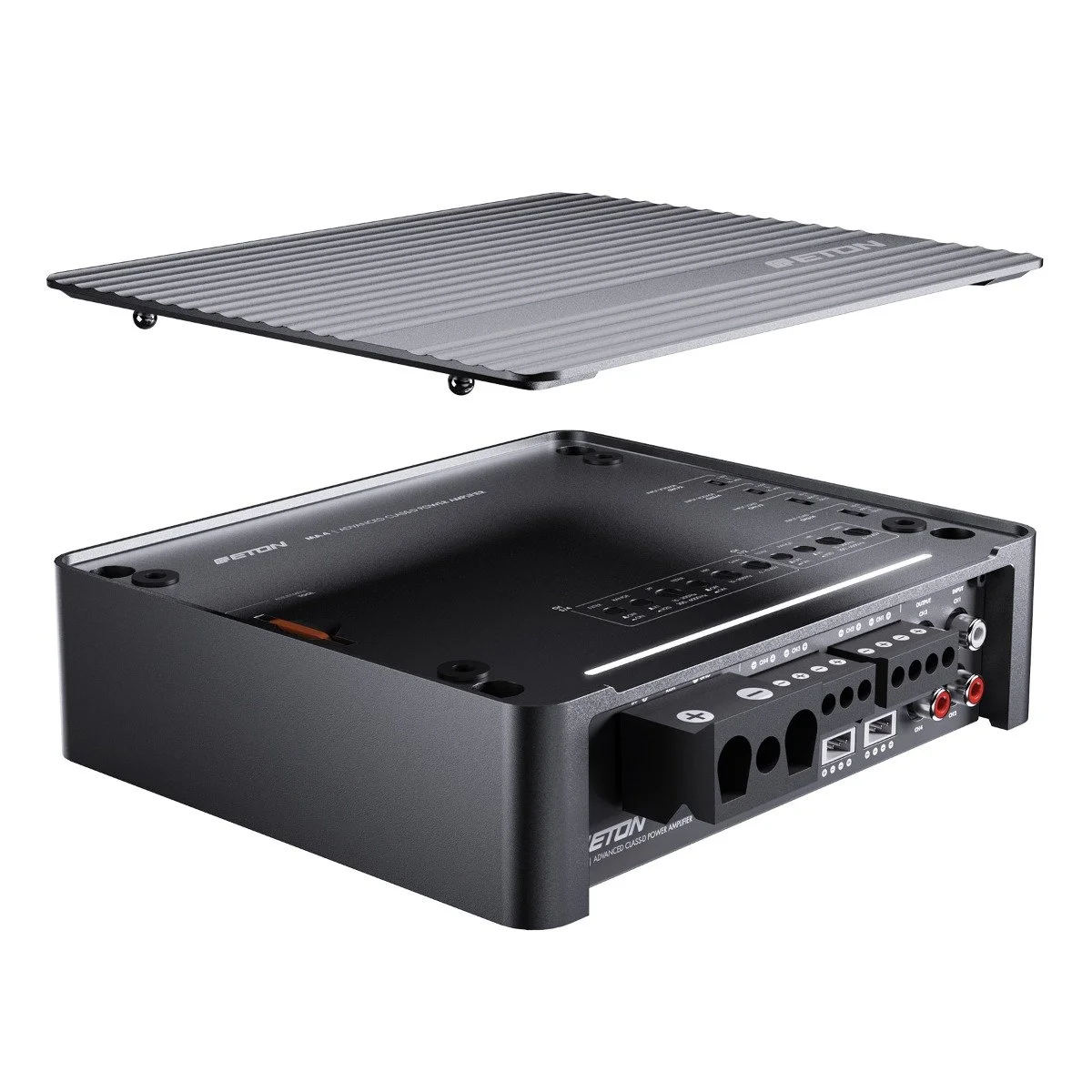

Hardware wise they’re vertically stackable and come with detachable connection plugs, variable mounting feet, hidden mounting holes, 180° rotatable top cover, active filter, EPS load and much more.
Design Features
– High-power class D technology.
– Impressive efficiency.
– High and low level inputs.
– Stackable chassis design.
– 180° rotatable top cover.
– LED light-bar.
– Ready for cars equipped with start / stop technology.
4-channel Advanced Class-D amplifier in high-quality die-cast aluminum housing in gunmetal finish with 4 x 105 W RMS at 4 Ω, 4 x 185 W RMS at 2 Ω and 2 x 368 W RMS at 4 Ω bridged. Signal-to-noise ratio 83 dB, damping factor @ 4 Ω >165, distortion THD+N 0. 005% @5 W 1 kHz, high-pass active filter CH 1/2 & CH 3/4: 15 - 300 Hz | 300 - 6000 Hz, low-pass active filter CH 3/4: 15 - 300 Hz | 300 - 6000 Hz, subsonic via HP, auto-sense on function (SIG / DC), gain setting 0.45 - 6 V, adjustable high-level input voltage 1 - 15 V | 15 - 40 V, adjustable high-level input impedance 10 | 150 | 600 Ω, switchable audio input signal on CH1-4, 4 high-level inputs, 4 low-level (RCA/cinch) inputs, removable power & audio signal plugs, variable mounting feet and additional blind holes for concealed mounting, removable and rotatable aluminum top plate and integrated adjustment tool for active filters and GAIN, LED status lightbar, stacking of several amplifiers possible incl. Level remote control and high-level cable. Dimensions (LxWxH) 184 x 160 x 51 mm.
