The new MA amplifier series combines the best performance with the smallest installation dimensions and also looks timelessly elegant. The high-quality die-cast aluminium enclosures are not only particularly attractive and have a perfect gunmetal surface finish, they are also particularly effective in terms of heat dissipation and enable maximum performance in the smallest possible size.
In addition, the removable aluminium cover plate on the top conceals the newly developed LED light bar, the integrated setting tool and numerous setting options, such as active filters: high & low pass, GAIN settings as well as high-level input voltage and input resistance. The new power amplifiers impress with high performance values, sensationally low THD+N distortion and full equipment: stackable, detachable connection plugs, variable mounting feet, hidden mounting holes, rotatable top cover by 180°, active filter, EPS load and much more.

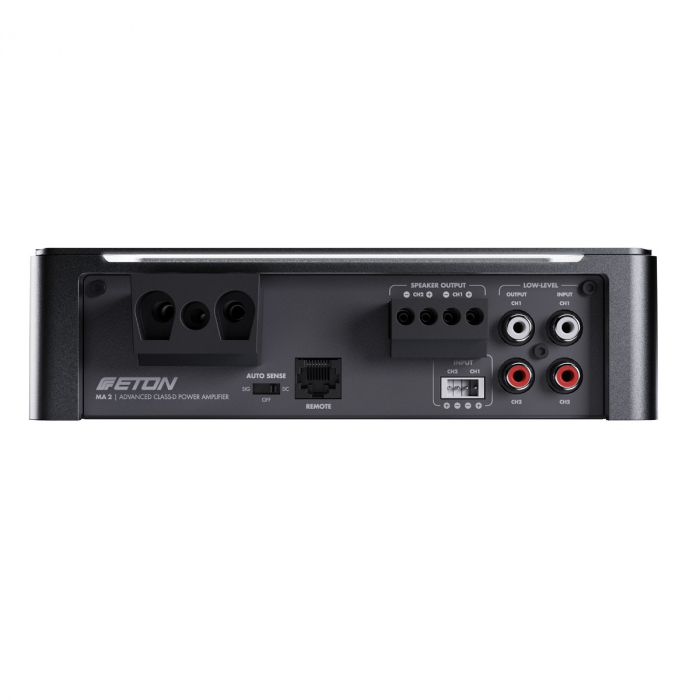

2-channel advanced Class-D amplifier in a high-quality die-cast aluminium housing with a gunmetal finish, rated at
2 x 190 W RMS at 4 Ω, 2 x 310 W RMS at 2 Ω, and 1 x 640 W RMS at 4 Ω bridged.
Signal-to-noise ratio 83.5 dB, damping factor @ 4 Ω > 185, THD+N distortion 0.005% @ 10 W at 1 kHz, high-pass active filter CH 1/2: 15 – 300 Hz, low-pass active filter CH 1/2: 15 – 300 Hz, subsonic via HP, auto-sense on function (SIG / DC), gain setting 0.45 – 6 V, adjustable high-level input voltage 1 – 15 V | 15 – 40 V, adjustable high-level input impedance 10 | 150 | 600 Ω, 2 x high-level inputs, 2 x low-level (RCA/Cinch) inputs, removable power and audio signal connectors, adjustable mounting feet and additional blind holes for concealed mounting, removable and rotatable aluminium top plate with integrated adjustment tool for active filter and GAIN, LED status light bar, stacking of multiple amplifiers possible including level remote control and high-level cable. Dimensions (LxWxH) 184 x 160 x 51 mm.
The new MA amplifier series combines the best performance with the smallest installation dimensions and also looks timelessly elegant. The high-quality die-cast aluminium enclosures are not only particularly attractive and have a perfect gunmetal surface finish, they are also particularly effective in terms of heat dissipation and enable maximum performance in the smallest possible size.
In addition, the removable aluminium cover plate on the top conceals the newly developed LED light bar, the integrated setting tool and numerous setting options, such as active filters: high & low pass, GAIN settings as well as high-level input voltage and input resistance. The new power amplifiers impress with high performance values, sensationally low THD+N distortion and full equipment: stackable, detachable connection plugs, variable mounting feet, hidden mounting holes, rotatable top cover by 180°, active filter, EPS load and much more.
2-channel advanced Class-D amplifier in a high-quality die-cast aluminium housing with a gunmetal finish, rated at
2 x 190 W RMS at 4 Ω, 2 x 310 W RMS at 2 Ω, and 1 x 640 W RMS at 4 Ω bridged.
Signal-to-noise ratio 83.5 dB, damping factor @ 4 Ω > 185, THD+N distortion 0.005% @ 10 W at 1 kHz, high-pass active filter CH 1/2: 15 – 300 Hz, low-pass active filter CH 1/2: 15 – 300 Hz, subsonic via HP, auto-sense on function (SIG / DC), gain setting 0.45 – 6 V, adjustable high-level input voltage 1 – 15 V | 15 – 40 V, adjustable high-level input impedance 10 | 150 | 600 Ω, 2 x high-level inputs, 2 x low-level (RCA/Cinch) inputs, removable power and audio signal connectors, adjustable mounting feet and additional blind holes for concealed mounting, removable and rotatable aluminium top plate with integrated adjustment tool for active filter and GAIN, LED status light bar, stacking of multiple amplifiers possible including level remote control and high-level cable. Dimensions (LxWxH) 184 x 160 x 51 mm.
