HELIX V EIGHT DSP MK2 - 8 Channel Amplifier | 10ch DSP
The new multi-tool for professionals
The small addition in the product name makes the big difference – the V EIGHT DSP MK2 is the logical evolution of its already more than impressive predecessor. Same look as before but in the inside Audiotec Fischer brought in all of his expertise and substantially optimized the hardware. The result is an 8-channel amplifier with ten processed DSP channels that is unrivalled in many ways.
Features
Up to 160 W RMS output power per channel into 2 ohms
“Pure Class GD” concept for outstanding sound quality combined with best possible efficiency
Extremely powerful 64 Bit “fixed point” Audio DSP
ACO – Advanced 32 Bit CoProcessor platform for system and DSP features like:
ISA (Input Signal Analyzer) and InputEQ for easy analysis and compensation of input signals
SFX sound effects – Augmented Bass Processing, StageXpander, RealCenter & Co.
High power 8-channel highlevel input with up to 32 V RMS input sensitivity and ADEP.3 circuit
Two processed RCA / Cinch outputs
1 to 1 Input / Output Routing (IOR) – same number of highlevel inputs and amplifier outputs
Virtual Channel Processing (VCP) allows even more flexible configuration for highly complex sound systems
HELIX Extension Card slot (HEC) for additional input / output modules like Bluetooth® Audio Streaming, High Resolution Audio Streaming via USB etc.
Compact design with low heat dissipation thanks to extraordinary efficiency
More Details
Read more details about this producthere.
Technical data
Power RMS ≤ 1% THD+N- @ 4 Ohms75 Watts per channel- @ 2 Ohms120 Watts per channel- @ 1 Ohm- - bridged @ 4 Ohms- - bridged @ 2 Ohms- Max. output power per channel*Up to 160 Watts RMS @ 2 OhmsAmplifier technologyPure Class GDInputs6 x RCA / Cinch
8 x Highlevel speaker input
1 x Optical SPDIF (12 - 96 kHz)
1 x Remote InInput sensitivityRCA / Cinch max. 4 V or max. 8 V

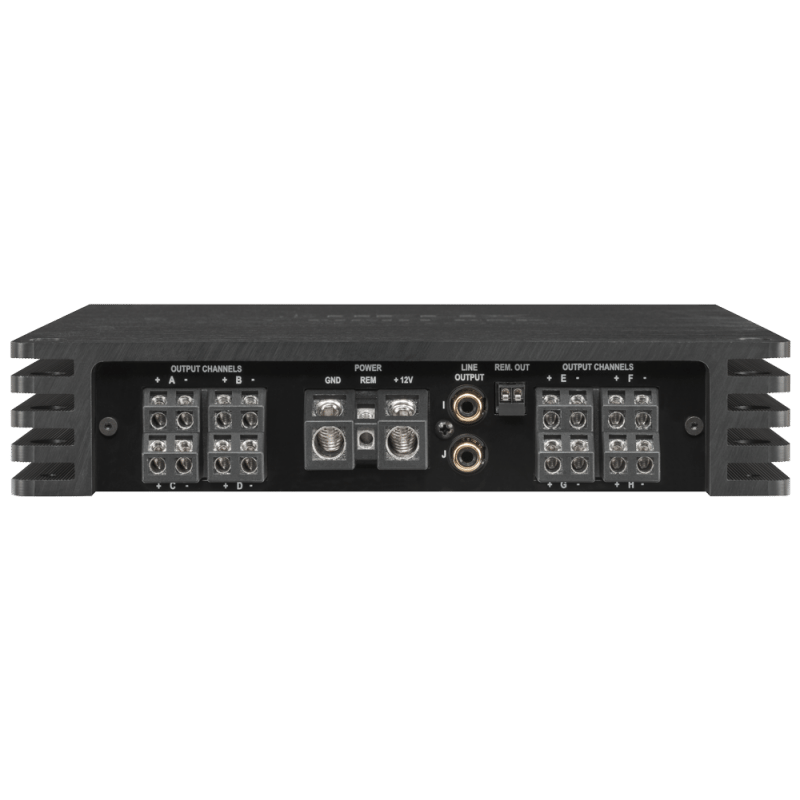

Highlevel max. 16 V or max. 32 VInput impedance RCA / Cinch12 kOhmsInput impedance highlevel9 - 33 Ohms or 20 kOhmsOutputs8 x Speaker output
2 x RCA / Cinch
2 x Remote OutOutput voltage RCA / Cinch3 Volts RMSFrequency response20 Hz - 22,000 HzDSP resolution64 BitDSP power295 MHz (1.2 billion MAC operations/second)Sampling rate48 kHzDSP typeAudio signal processorSignal convertersA/D: AKM 32 Bit
D/A: AKM 32 BitSignal-to-noise ratio digital input107 dB (A-weighted)Signal-to-noise ration analog input102 dB (A-weighted)Distortion (THD)< 0.015 % Damping factor> 70Operating voltage10.5 - 16 Volts (max. 5 sec.down to 6 Volts)Idle current540 mAMax. remote output current500 mAFuse2 x 30 A LP-Mini-fuse (APS)Additional featuresHEC slot, ADEP.3 circuit, Auto Remote switch, 32 Bit CoProcessor, Control InputDimensions (H x W x D)44 x 220 x 180 mm /
1.73 x 8.66 x 7.09“
* In typical multi-channel applications (2- / 3-way system + rear + subwoofer)
Scope of delivery
1 x Amplifier HELIX V EIGHT DSP MK2
1 x USB cable
1 x Jumper
2 x Allen key
1 x Mounting material
1 x Instruction manual
